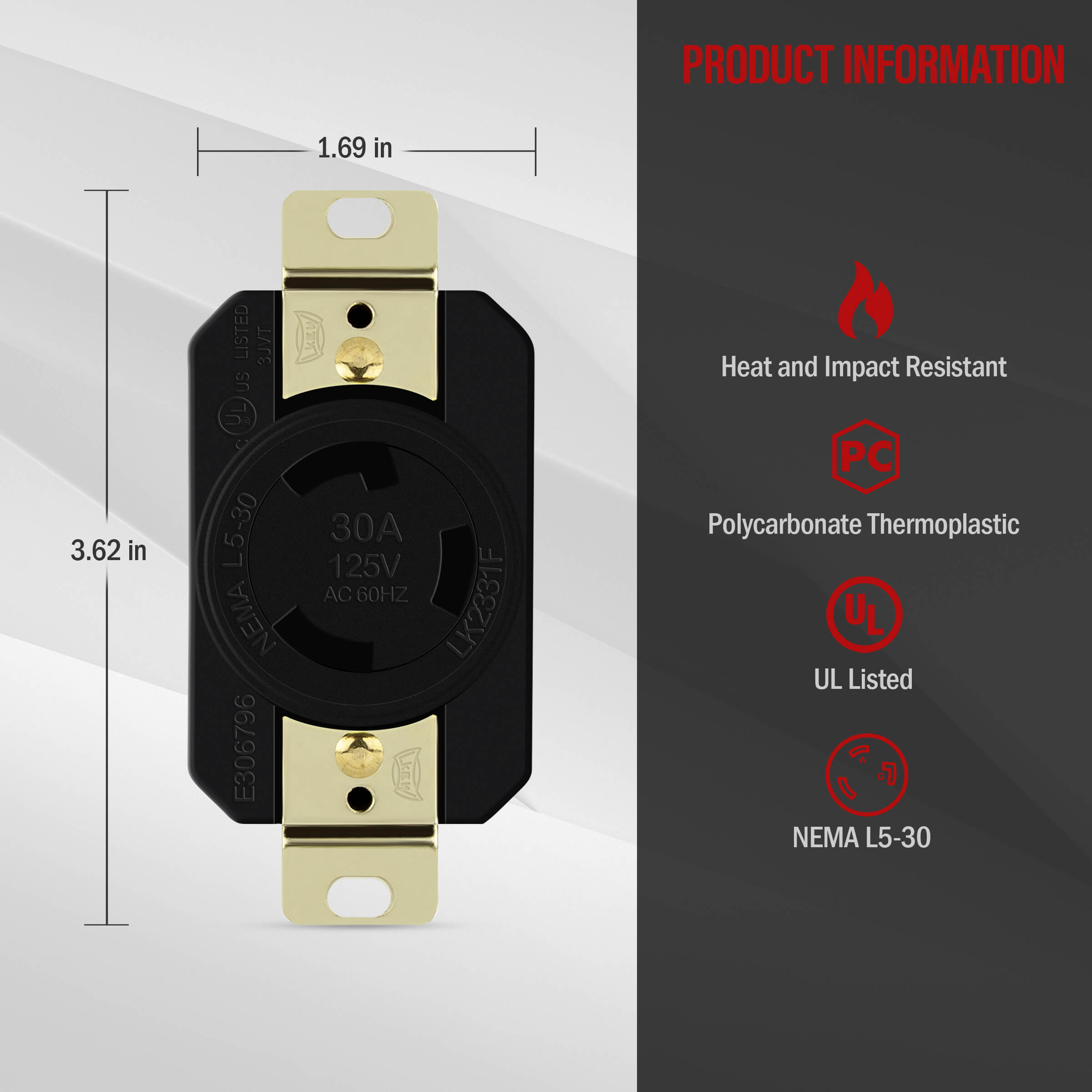

30A/125V Locking Receptacle, NEMA L5-30R


Availability: In stock

• NEMA L5-30R industrial grade locking receptacle

• 30 Amp, 125 Volts, 60Hz, 2-Pole, 3-Wire Grounding

• Chemical and impact-resistant nylon construction

• Nickel-plated mounting strap

• Wire gauge: 14-8 AWG

• NEMA configuration and device rating clearly marked

• UL listed

NEMA L5-30R 30A/125V Locking Receptacle, Industrial Grade: 66440-BK

This NEMA outlet is made of impact-resistant nylon face and body with heavy-duty, nickel-plated mounting straps, making it highly durable in most applications. The NEMA configuration and device rating are clearly marked on the front. Use in combination with a NEMA L5-30P locking plug, such as Enerlites 66452-BK.

Technical Specifications

Type NEMA L5-30R
Material High impact-resistant nylon
Power Rating 30 Amp, 125 Volt, 60Hz
Style Locking Receptacle
Gang 1-Gang
Color Black
Poles 2-Pole
Wiring 3-Wire Grounding
Included Installation Instructions
Certifications & Compliances UL Listed, NEMA configuration and device rating clearly marked
Weight 3.8 oz
Dimensions 2.5 × 0.017 × 8.5 in
