30A/250V Locking Plug, NEMA L6-30P

$14.17

Availability: In stock

• NEMA L6-30P industrial grade straight blade locking plug

• 30 Amp, 250 Volts, 60Hz, 2-Pole, 3-Wire Grounding

• Chemical and impact-resistant polycarbonate construction

• Twist-lock mechanism

• Wire gauge: 14-10 AWG; terminals marked for easy installation

• NEMA configuration and device rating clearly marked

• UL listed

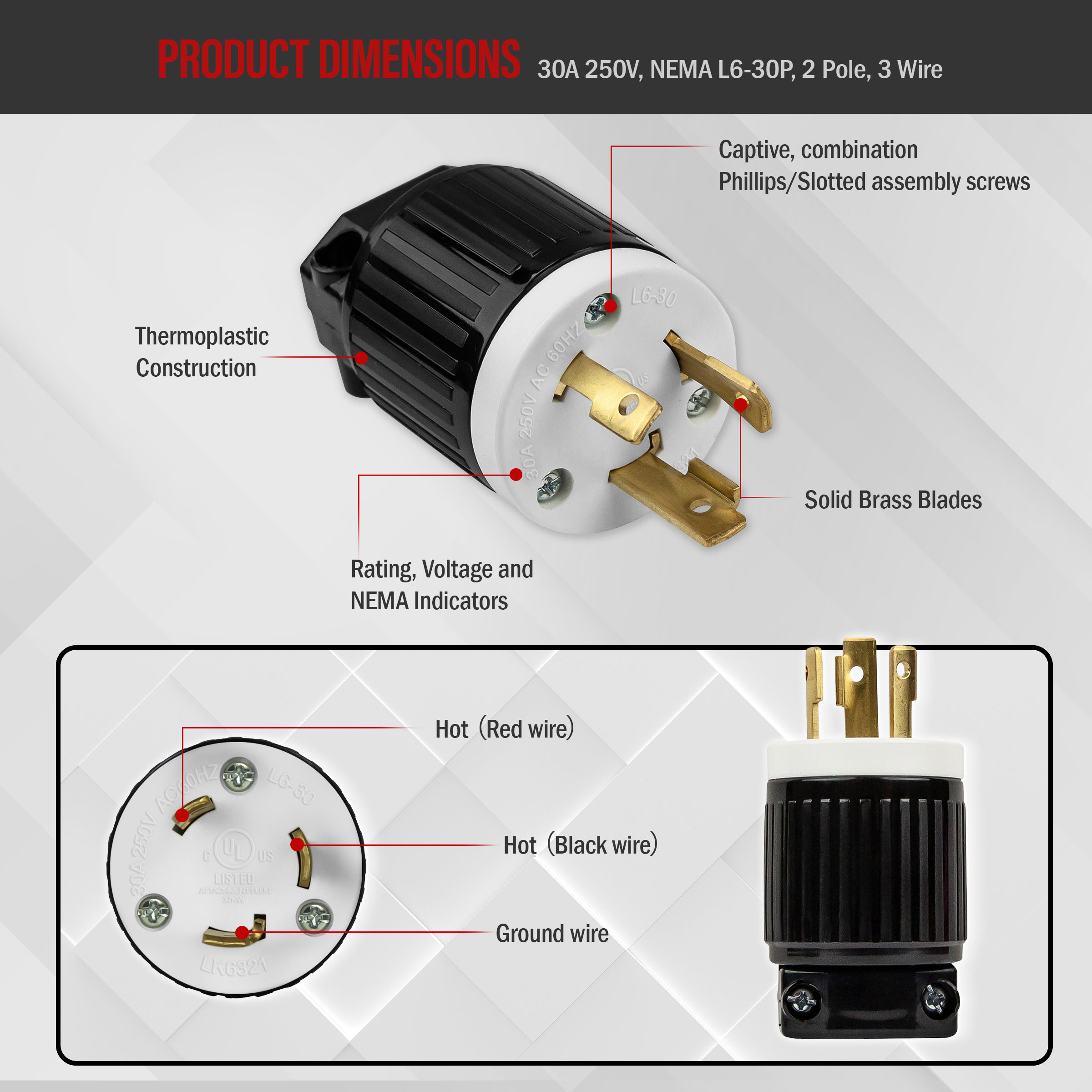

NEMA L6-30P 30A/250V Locking Plug, Industrial Grade: 66461-BK

This NEMA locking plug is industrial/commercial grade and is made of highly durable polycarbonate thermoplastic with solid brass blades, making it virtually indestructible in most applications. The NEMA configuration and device rating are clearly marked on the front. Use in combination with a NEMA L6-30C locking connector, such as Enerlites 66462-BK.

Technical Specifications

Type NEMA L6-30P
Material High impact-resistant nylon
Power Rating 30 Amp, 250 Volts, 60Hz
Style Locking Plug
Gang 1-Gang
Color Black
Poles 2-Pole
Wiring 3-Wire Grounding
Included Installation Instructions
Certifications & Compliances UL Listed, NEMA configuration and device rating clearly marked
Weight 3.3 oz
Dimensions 2.5 × 0.109 × 4.5 in
