Ceiling Mounted Line Voltage PIR Motion Sensor, 1,200 sq. ft Range

$38.99

Availability: In stock

• Adjustable settings

• 1200 sq. ft coverage

• 24VDC; Incandescent: 800W/120VAC; Ballasts: 800VA/120VAC, 1600VA/277VAC; Motor: 1/4HP

• Operating temperature (32 -“ 131°F)

• UL listed, CA Title 24 compliant, neutral wire required

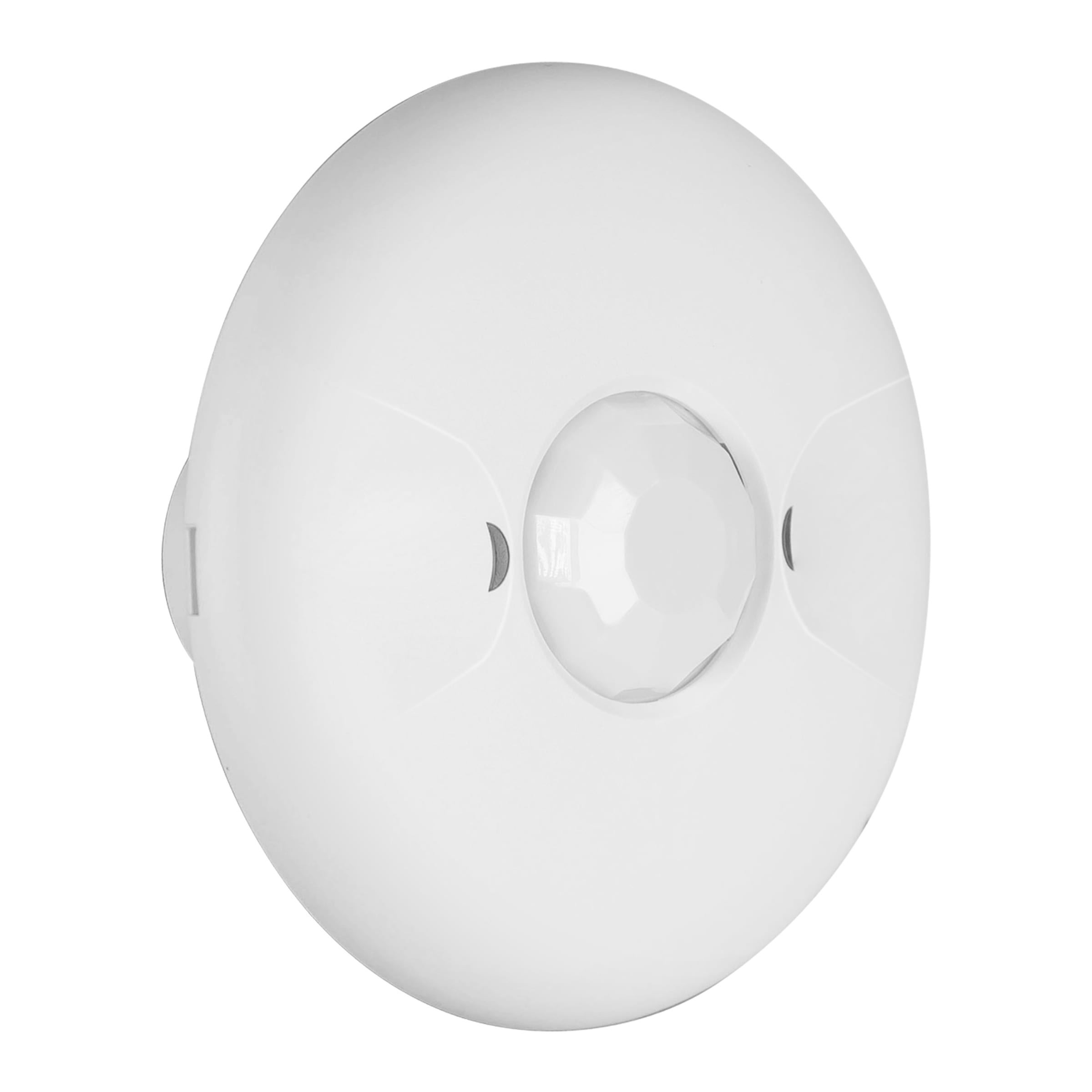

Line Voltage 360° Ceiling Mounted PIR Motion Sensor Switch

Enerlites MPC-50V ceiling sensor is ideal for use for the purpose of convenience, energy efficiency, security, and surveillance. This occupancy sensor ceiling mount automatically turns lights ON/OFF when it detects motion and ambient light level. This ceiling sensor Includes two gray wires (22AWG) for connecting the unit to a momentary switch.

Features

Ceiling motion sensor with passive infrared (PIR) technology automatically turns lights on and off based on motion detected in a room. Designed for a ceiling height of about 8-10ft. Full 360-degree field of view up to 1200 sq ft coverage.

Commercial Grade

Ceiling sensor ideal for storage spaces, businesses, bathrooms, hallways, and offices

Junction box installation (j-box not included). Neutral wire required.

Operation

Adjustable time delay 5 seconds – 30 minutes. Motion detector comes with multi-level Fresnel Lens, adjustable sensitivity, and light level via DIP switch. Compatible with LED, CFL, incandescent light bulbs. Sensitivity adjustment from 50% to 100%. Occupancy sensor controls incandescent, CFL, and LED lighting. 1/4 HP 120VAC @ 60Hz. Operation temperature 32F to 131F. UL/CUL Listed. California Title 24 Compliant.

5 seconds – 30 minutes. Motion detector comes with multi-level Fresnel lens, adjustable sensitivity, and light level via DIP switch. Compatible with LED, CFL, incandescent light bulbs. Sensitivity adjustment from 50% to 100%. Occupancy sensor controls incandescent, CFL, and LED lighting. 1/4 HP 120VAC @ 60Hz. Operation temperature 32F to 131F. UL/CUL Listed. California Title 24 Compliant

Technical Specifications

Voltage 120-277 VAC, 60Hz
Coverage 1200 sq. ft at 360 degrees field of view
Time Delay 5 Secs to 30 Mins
Motor 1/4HP, 120VAC, 60H
Operating Temperature 32 to 131 Fahrenheit (0 to 55 Degrees Celsius)
Sensor Adjustments Light Level: 10FC-150FC
Lens Multi-level, 360 Degrees Fresnel
Installation 8-10 feet
Compatibility Incandescent: 800W @ 120VAC, 60Hz, Fluorescent: 800VA @ 120VAC/ 1600VA @ 277VAC
Certifications & Compliance California Title 24 Compliant, UL Listed
Weight 6 oz
Dimensions 5.0 × 5.0 × 2.0 in
