Industrial Grade Decorator Outlet, 20A 125V

$9.99

• Child safe tamper-resistant decorator receptacle increases safety by preventing unwanted objects from being inserted; complies with 2017 NEC Article 406.12

• Industrial grade 20A decorator outlet; replaces any 1-gang wall outlet or receptacle; shallow body design fits standard junction boxes; suitable for industrial, commercial, and residential locations such as factories, warehouses, power plants, apartments, corporate buildings, hotels, restaurants, offices, retail businesses, and more

• Self-grounding for easy installation; dimensions: 4.09” height x 1.31” length x 1.10” depth; wiring method choice of back insert or side screw terminals (copper wire only); break-off plaster ears for easy positioning and firm attachment; installation instructions included

• Durable construction made from impact-resistant Polycarbonate Thermoplastic (PCT) material for long service life; use with ENERLITES wall plates for the best fit and color match, recommended models: SI8831-GY (screwless cover), 8831-GY (standard size), 8831M-GY (mid-size), 8831O-GY (oversized), or 7731 (stainless steel)

• 20A 125V 60Hz, 5-20R; self-grounding; 2-pole; 3-Wire; flammability UL94, V2 Rating; UL Listed; 1-year warranty; wall plate sold separately

Clear
SKU: 63200-TR Categories: ,

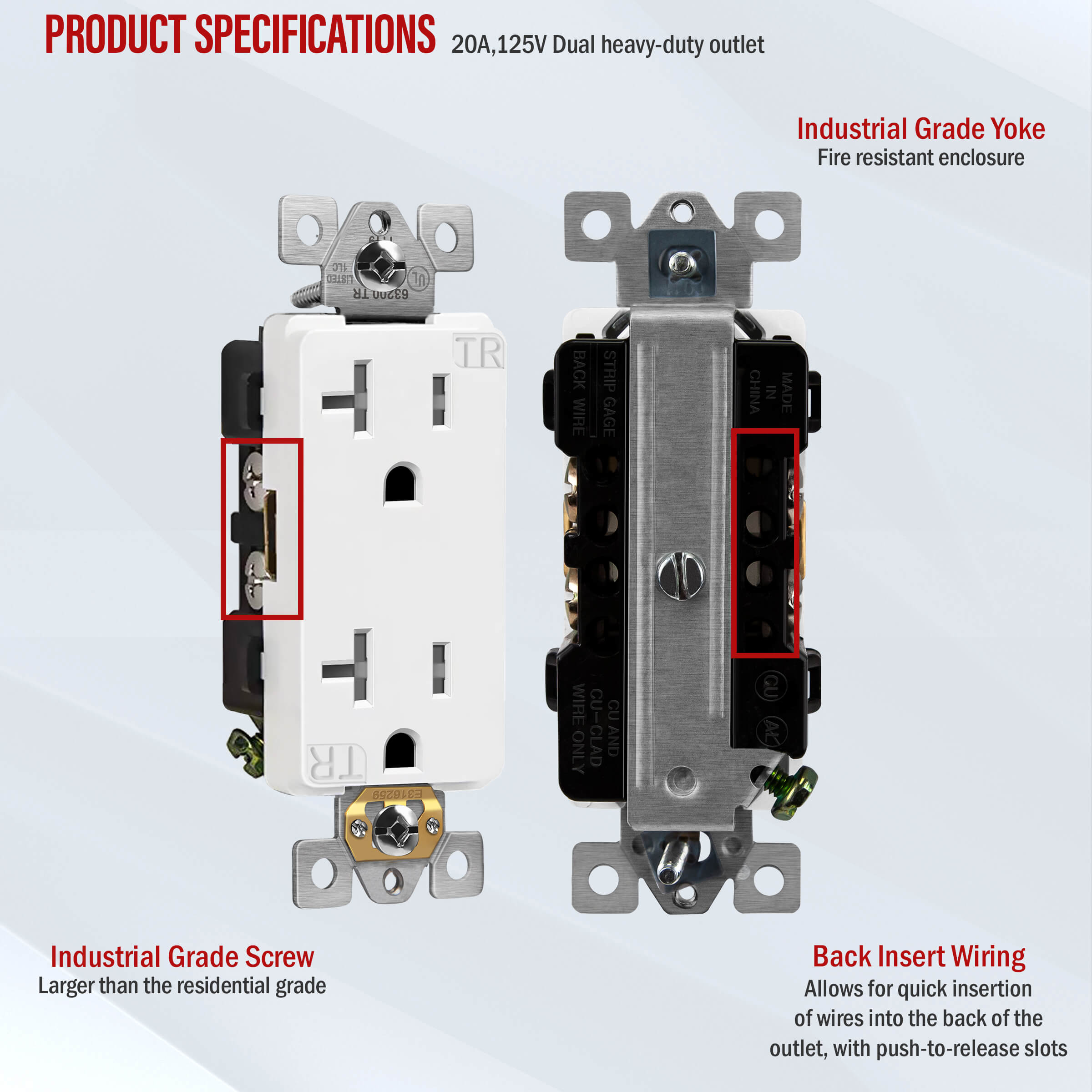

Industrial Grade Decorator Outlet Receptacle

The 63200-TR is a tamper-resistant electrical outlet designed for industrial and commercial applications. This decorator receptacle features a durable body made from high-quality Polycarbonate Thermoplastic (PCT) material for high impact resistance and long-lasting applications. The 20 amp wall outlet is easy to install and is perfect for physically demanding locations such as factories, warehouses, power plants, corporate buildings, and more.

Technical Specifications

Power Rating 20A 125VAC, 5-20R
Style Tamper-Resistant design
Material Polycarbonate Thermoplastic body
Certifications & Compliance UL listed
Weight 3.2 oz
Dimensions 1.8 × 1.8 × 4.3 in
