NEMA L14-30 Flanged Outlet Locking Plug Charger Receptacle 30 Amp White

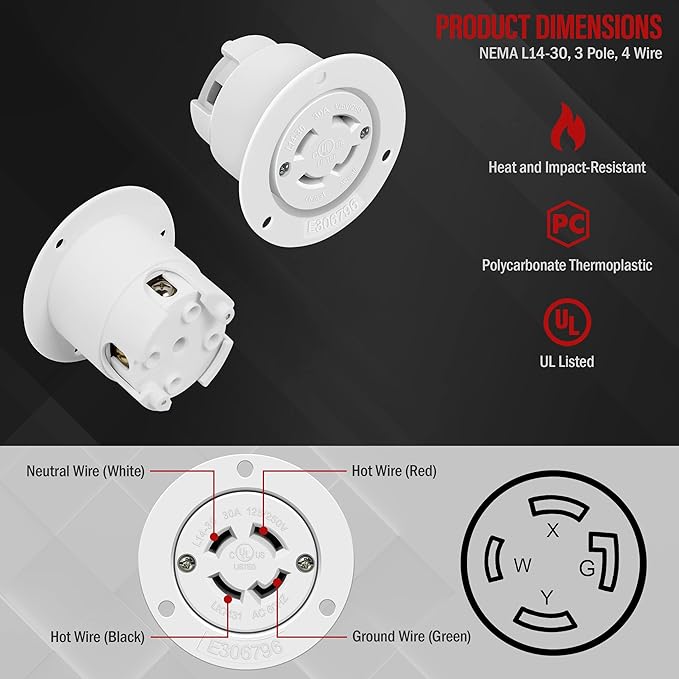

• Industrial grade flanged inlet designed for maximum durability; NEMA L14-30P, 30A, 125/250VAC, 3-pole, 4-wire, grounding
• NEMA inlet is made of reinforced thermoplastic polyester and nylon to protect from high impact, abrasion, and chemicals; solid brass blades for improved conductivity

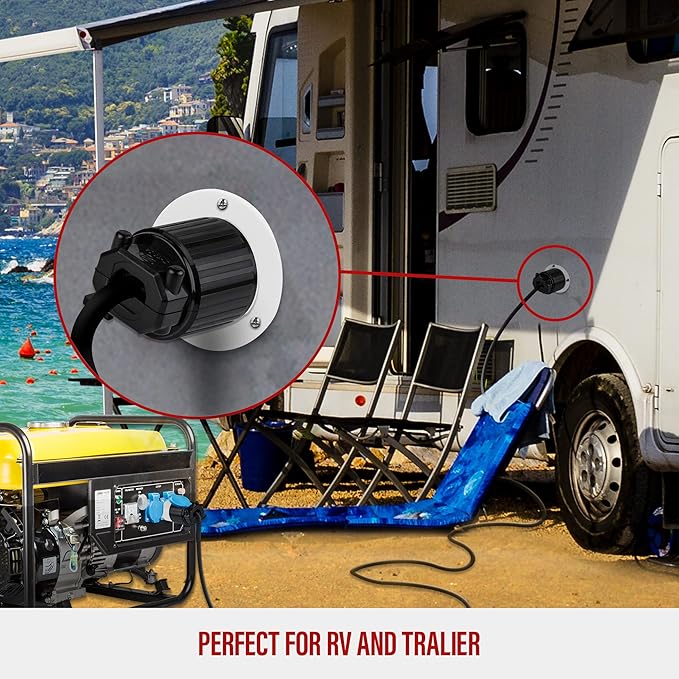

• Ideal for heavy-duty, industrial applications, such as generators, transfer switches, welding equipment, RVs, trailers & campers
• Easy, do-it-yourself installation; back-wired; color-coded screws; 3” diameter, mounting holes 2.25” apart; #10 AWG solid copper wire
• One-year warranty, UL listed, NEMA configuration and device rating clearly marked for easy identification

NEMA L14-30 Flanged Outlet, Locking Plug Charger Receptacle, 30 Amp, 125/250 Volt, 3 Pole, 4 Wire Grounding, Industrial Grade, 66494-W, White

ENERLITES locking devices are made with the highest quality and most durable parts for reliable and high-performance use. The flanged outlet features a twist locking mechanism to hold connectors in place and provide a safe disconnect solution. The design allows an equipment load and power source to remain secure in high-vibration applications and prevent accidental disconnection.

Technical Specifications

Manufacturer ENERLITES
Part Number 66494-W
Item Weight ‎3.73 ounces
Product Dimensions ‎3.3 x 3.3 x 2.7 inches
Color White
Style ‎NEMA L14-30FI
Voltage ‎250 Volts
Weight 2.8 oz
Dimensions 6.5 × 2 × 6.5 in
