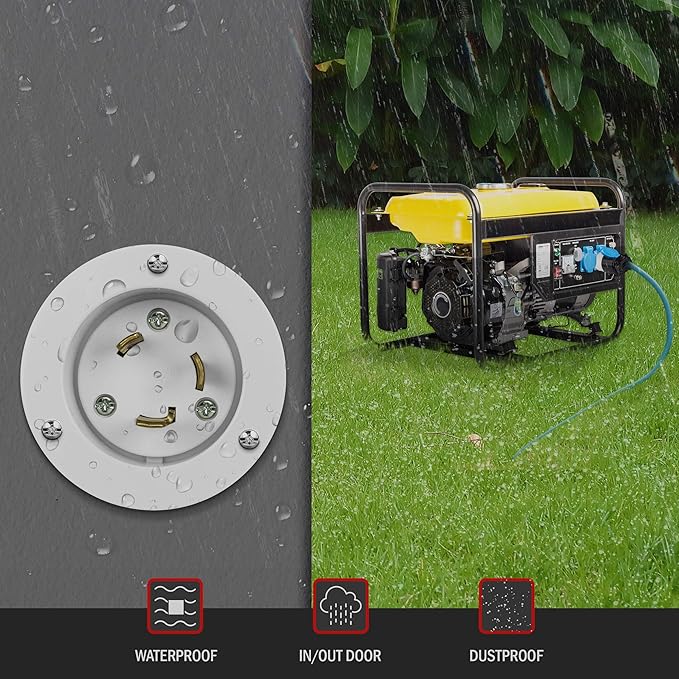

NEMA L6-30 Flanged Inlet Generator Plug Locking Receptacle Socket 30 Amp White

SKU: 66463-W Categories: , ,

$16.99

Availability: In stock

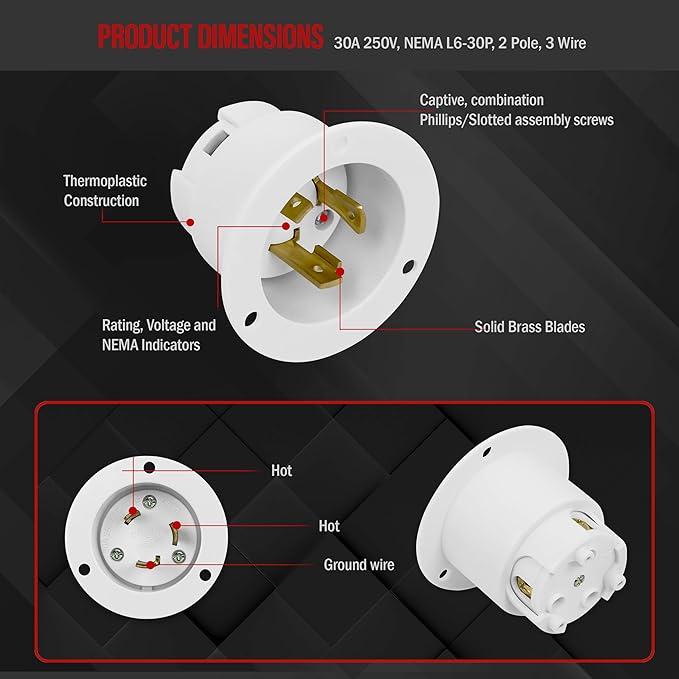

• Industrial grade flanged inlet designed for maximum durability; NEMA L6-30P, 30A, 250VAC, 2-pole, 3-wire, grounding
• NEMA is made of reinforced thermoplastic polyester and nylon to protect from high impact, abrasion, and chemicals; solid brass blades for improved conductivity

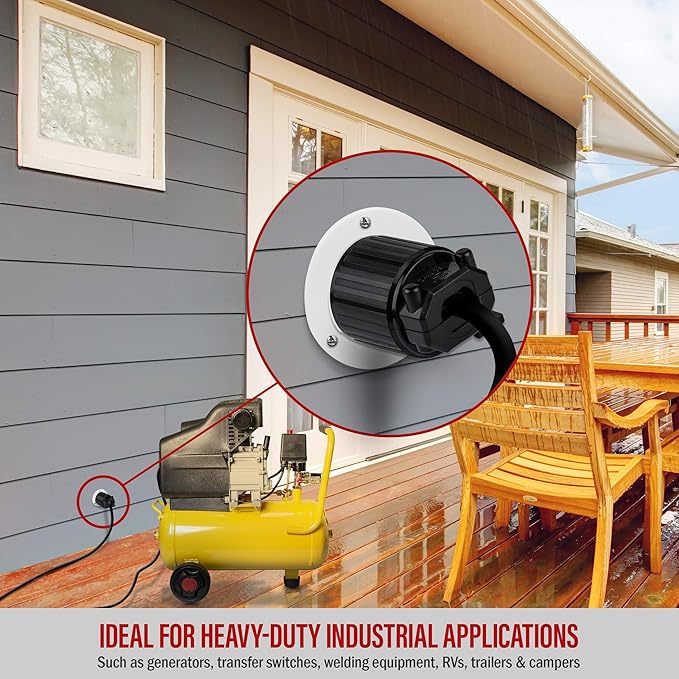

• Ideal for heavy-duty, industrial applications, such as generators, transfer switches, welding equipment, RVs, trailers & campers
• Easy, do-it-yourself installation; back-wired; color-coded screws; 3” diameter, mounting holes 2.25” apart; #10 AWG solid copper wire
• One-year warranty, UL listed, NEMA configuration and device rating clearly marked for easy identification

NEMA L6-30 Flanged Inlet Generator Plug, Locking Receptacle Socket, 30 Amp, 250 Volt, 2 Pole, 3 Wire Grounding, Industrial Grade, 66463-W, White

ENERLITES locking devices are made with the highest quality and most durable parts for reliable and high-performance use. The flanged inlet features a twist locking mechanism to hold contacts in place and provide a safe disconnect solution. The design allows an equipment load and power source to remain secure in high-vibration applications and prevent accidental disconnection.



Technical Specifications

Manufacturer ENERLITES
Part Number ‎66463-W
Item Weight ‎3.2 ounces
Product Dimensions ‎3.3 x 3.3 x 2.7 inches
Color White
Style ‎NEMA L6-30FI
Voltage ‎250 Volts
Weight 2.8 oz
Dimensions 6.5 × 2 × 6.5 in
