30A/125V Locking Connector, NEMA L5-30C


Availability: In stock

• NEMA L5-30C industrial grade locking cord connector

• 30 Amp, 125 Volts, 60Hz, 2-Pole, 3-Wire Grounding

• Chemical and impact-resistant polycarbonate construction

• Twist-lock mechanism

• Wire gauge: 14-10 AWG; terminals marked for easy installation

• NEMA configuration and device rating clearly marked

• UL listed

NEMA L5-30C 30A/125V Locking Connector, Industrial Grade: 66452-BK

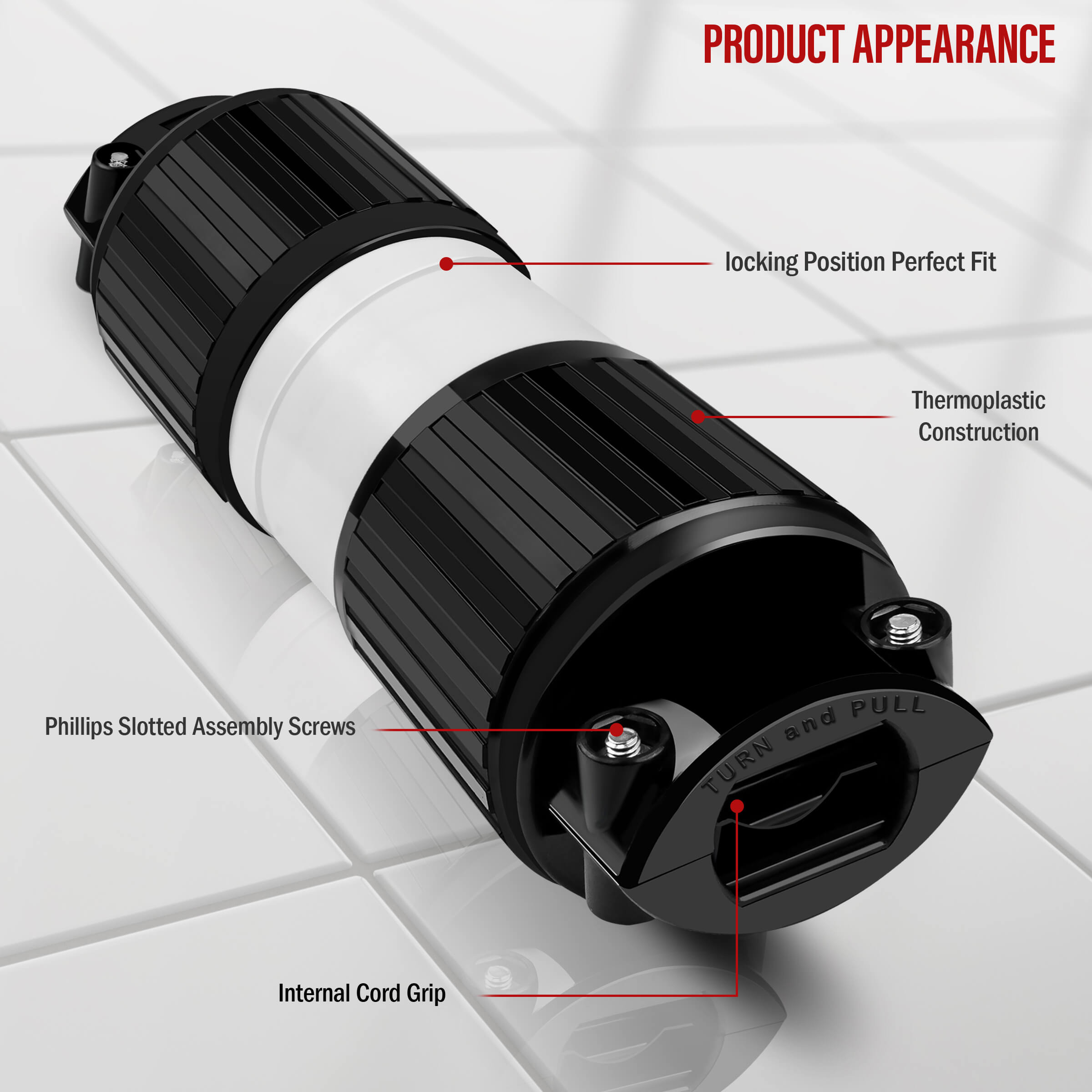

This NEMA locking cord connector is made of impact-resistant polycarbonate thermoplastic, making it highly durable in most applications. The NEMA configuration and device rating are clearly marked on the front. Use in combination with a NEMA L5-30P locking plug, such as Enerlites 66450-BK.

Technical Specifications

Type NEMA L5-30C
Material High impact-resistant nylon
Power Rating 30 Amp, 125 Volt, 60Hz
Style Locking Connector
Gang 1-Gang
Color Black
Poles 2-Pole
Wiring 3-Wire Grounding
Included Installation Instructions
Certifications & Compliances UL Listed, NEMA configuration and device rating clearly marked
Weight 4.7 oz
Dimensions 2.5 × 0.172 × 4.5 in
